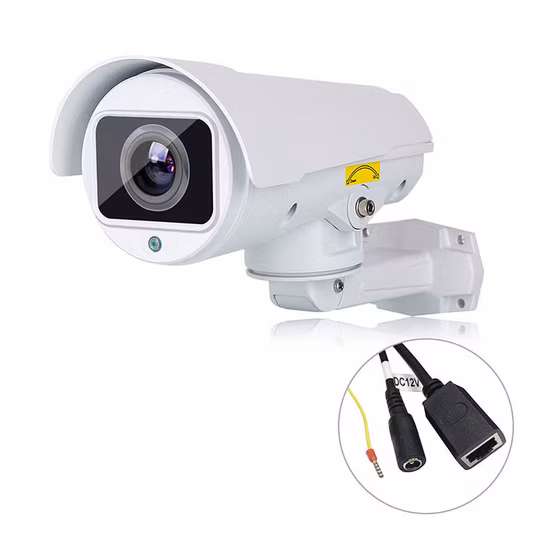

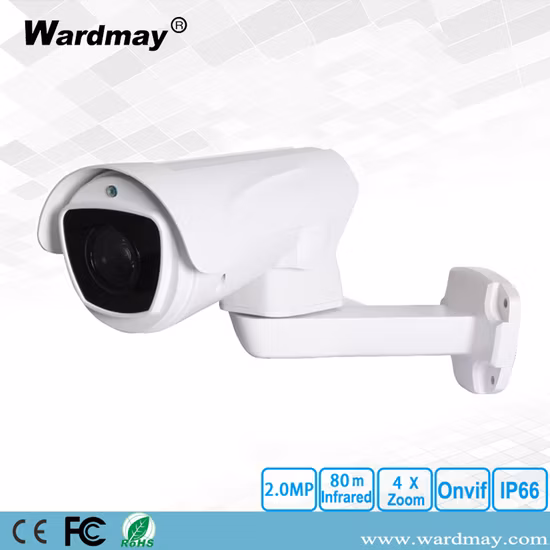

Wdm-5X 1080P IP PTZ Motion Detection IR Camera

Basic Info

Model NO.	WDM-IP7905MHR
Kind	Autofocus Lens
Certification	CE, FCC, RoHS
Feature	Waterproof / Weatherproof, High Definition, Vandal-proof
Effective Distance	50
Sensor Size	1/3 inch
Remote Control	With Remote Control
DSP	Hisilicon 3516c DSP
Image Sensor	1/3CMOS Hi3516c+Sony 323
Resolution	1920*[email protected]/25fps
Pan Speed	30 Degree/S
Tilt Speed	25 Degree/S
IR Range	6PCS IR LEDs, 80-100m IR Range
Stream	Double Streaming
P2p	Android, Iphon
Connector	RJ45
Power	DC12V (2A)
Transport Package	Natural Package
Specification	SGS
Trademark	Wardmay
Origin	Shenzhen, China
Production Capacity	20000PCS/Month

Product Description

Wdm-5X 1080P IP PTZ Motion Detection IR Camera

Feature:
1.Adopt 6pcs infrared light, Effective exposure distance up to 40-50m2.Horizontal rotation 180 ° continuous rotation, support automatic flip, no monitoring blind spot.3. Pan speed max 25°/s,tilt speed max 20°/s4. Pan speed 0°/s~25°/s,tilt speed 0°/s~20°/s,5.Support 16 preset;1 patrols;1 patterns;support AB scan;6.Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples7.Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity

Specifications:

WDM-10X 1080P IP PAN/TILT MOTION DETECTION IR CAMERA
Module	WDM-IP7905MHR
Sensor	1/3''Cmos 1080P Sony323
Lens	2.7mm~13.5mm 5X Zoom
Resolution	1920*[email protected]/25fps
Rotation	Pan 160 degree
Pan speed	0-25 degree/s
IR range	5X ZOOM 35μ6PCS IR LEDS, 40-50m ir range
IR control	PWM
AB scan	support 0-160 degree
AB speed	1-9 grade selectable
preset	220
Tour	3 group (each group 16 preset/dwell time and speed selectable)
Calibration	support
Stream	double streaming, 2 H.264 & 1 MJPEG (triple streaming)
Network
Compression	H.264/M-JPEG
Audio	G711,PCM
P2P	Android Iphon
Protocols	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPOE,NTP,UPNP,SNMP,FTP,802.1x,QOS,HTTPS,IPv6(SRTP)ONVIF
Power	DC12V(2A)
Temperature	-30~60 degree
Consumption	<=10W
Connector	RJ45
Thunder Proof	6000V
Package Size	W265mm*D137mm*H130mm
Weight	N w0.83KG/GW0.98KG
OSD Menu:	English / Chinese

Product Show:
