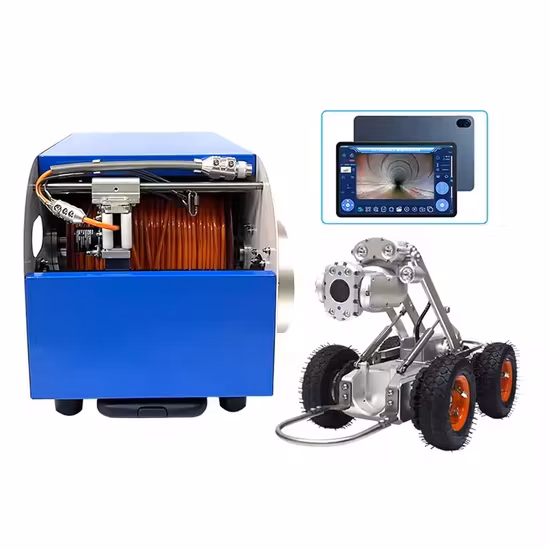

360 Degree Rotate Waterproof Pipe Inspection Camera Crawler Robot CCTV System
Overview Package size per unit product 85.00cm * 76.00cm * 68.00cm Gross weight per unit product 75.000kg Product Descri
Basic Info
Model NO. | GT102 |
Sensor | CMOS |
HDMI Format | AVI |
Horizontal Resolution | 1920*1080P |
Kind | Autofocus Lens |
Certification | CE, ISO9001: 2000 |
Feature | Waterproof / Weatherproof, High Definition |
Effective Distance | 50-250m |
Sensor Size | 200mm Above Pipe Diamter |
Remote Control | Without Remote Control |
Control Box | 10.1 Inch Screen |
Resolution | 1920*1080P |
Language | 8 Language |
Data on Monitor | Meter, Slope |
512Hz | Customized |
Suitable Pipe | 120-600mm |
Length | 50-150m |
Barrow | Electrical Barrow |
Cable Material | Professional Kelvar |
Camera Rotate | 360 Degree Rotate Endless |
Flip | 220 Degree Flip |
Laser | Compare Measurements |
Waterproof | IP68 |
Wheels | 73 120mm Optional |
Pay-off Cable | Electrical |
Transport Package | Carton |
Specification | standard |
Trademark | no |
Origin | Made in China |
HS Code | 8525801390 |
Packaging & Delivery
Package size per unit product 85.00cm * 76.00cm * 68.00cm Gross weight per unit product 75.000kgProduct Description
Product Description

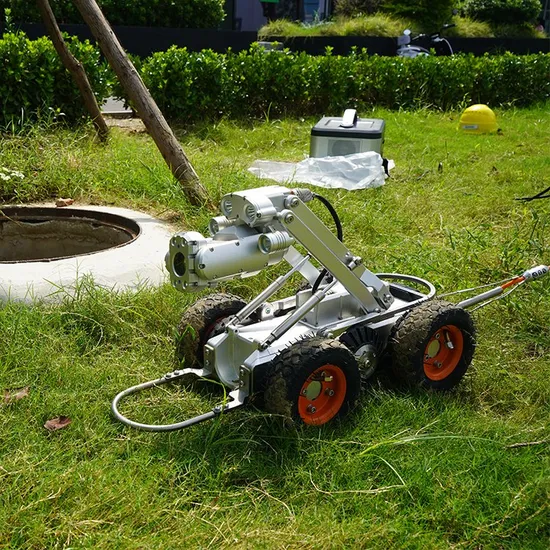

GT102A Pipe inspection camera ,is widely used in many field, such as includes technical supervision, energy, electric power, petrochemical, shipbuilding, rail transit, food and medicine, municipal management, aerospace, military research institutes and many other fieldssuitable for pipe diameter 120-600mm, cable length can be customized.
Product Parameters
suitable diameter | pipe diameer:120-600mm |
cable length | standard is 100m or customized |
screen size | 10 inch |
resolution | 1920*1080P |
pixel | 2000000 or 1000000 or customized |
brightness | adjustable |
wheel of pipe crawler robot | 73/120mm |
barrow | electrical barrow |
